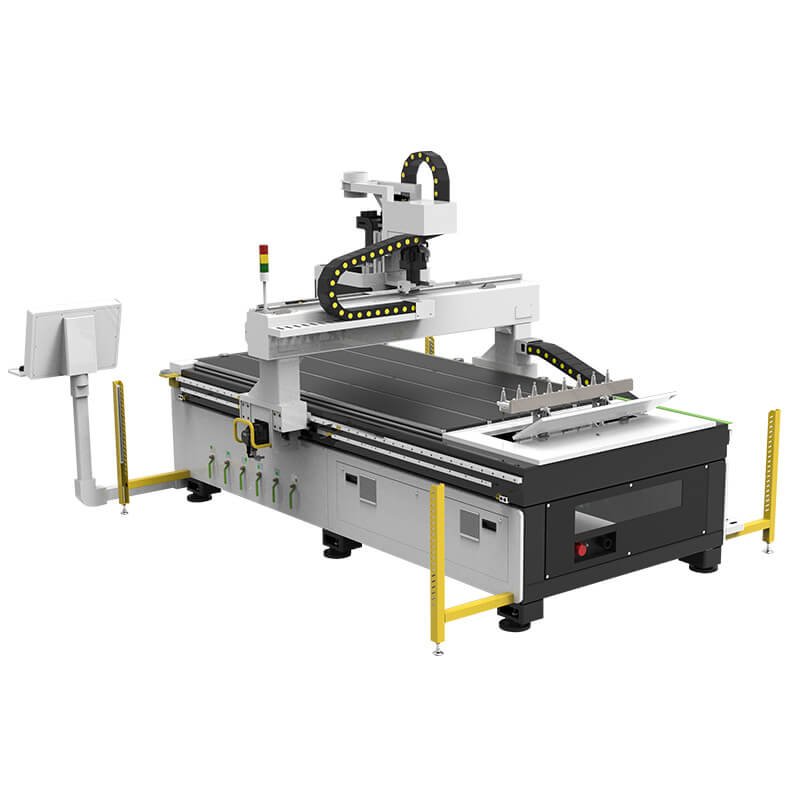

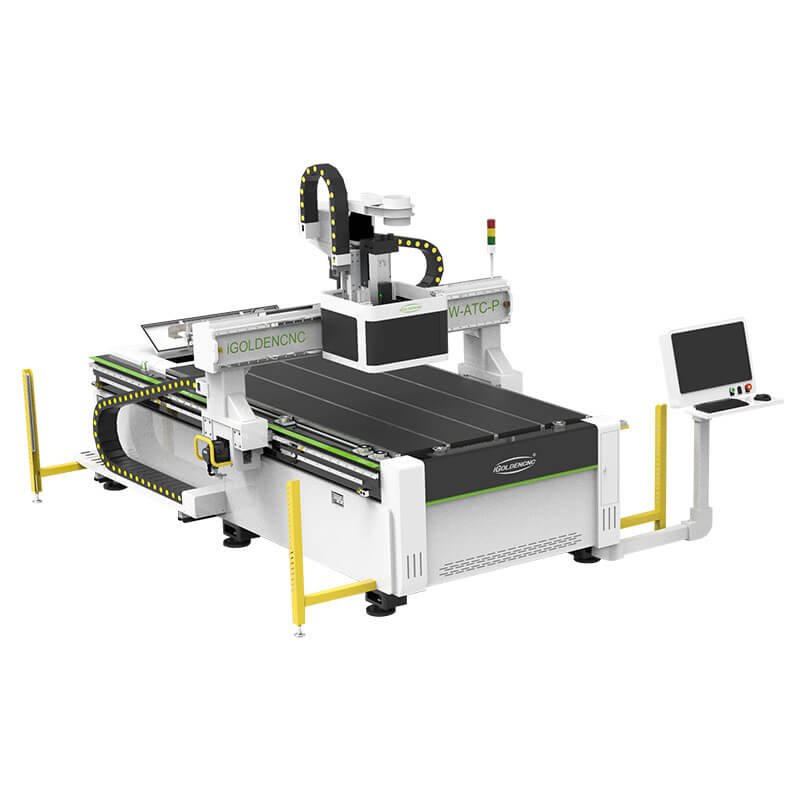

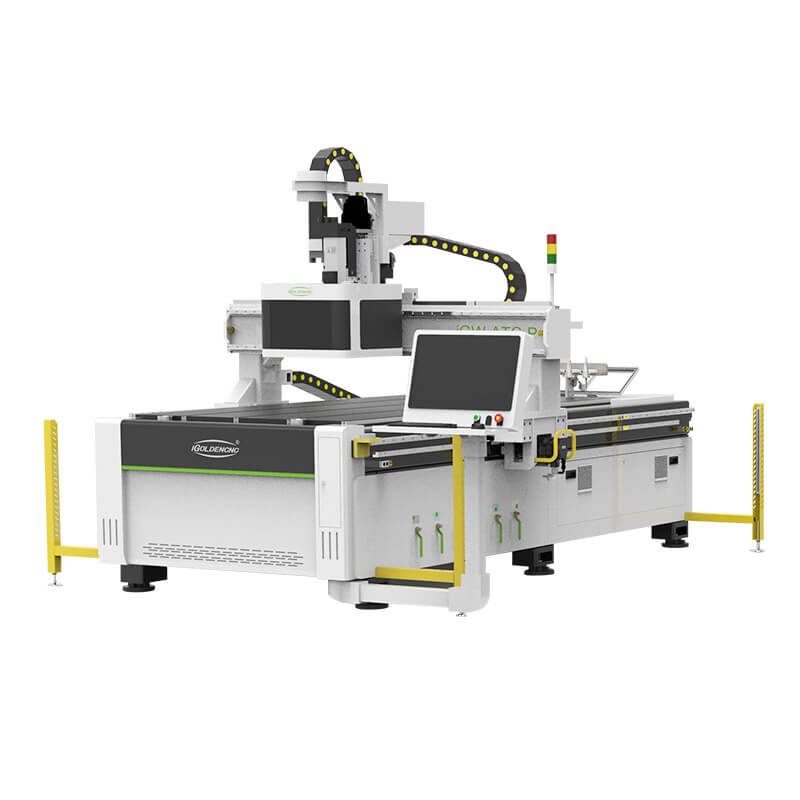

ATC CNC Router with Auto Tool Changer – 4-Axis Woodworking Machine

Key Specifications

Working Area	1300×2500 to 2000×4000 mm
Z Axis Height	250 mm
Positioning Accuracy	0.03 mm
Spindle	9.0 kW air-cooling, 24000 rpm
Max. Working Speed	30000 mm/min

Estimated delivery time: Mar 29, Sunday – Apr 2, Thursday

Category:Uncategorized

Product Details

High-Performance ATC CNC Router for Precision Woodworking

Engineered for high-volume production, this 4-axis ATC CNC router features an integrated automatic tool changer with 8–10 station tool magazine (carousel or linear), enabling seamless tool swaps between operations—no manual intervention or machine downtime required. Ideal for cabinets, furniture, signage, and complex 3D carving, it consolidates multiple processes into a single platform, reducing labor, minimizing setup time, and maximizing ROI. Compatible with wood, MDF, plywood, PVC, acrylic, and aluminum.

Technical Specifications

Working Area	1300 × 2500 / 1500 × 3000 / 2000 × 3000 / 2000 × 4000 mm (customizable options)
Z Axis Height	250 mm (sufficient for thick material processing and multi-layer tooling)
Positioning Accuracy	±0.03 mm (ensures high-precision contouring and fine-detail woodworking)
Re-positioning Accuracy	±0.02 mm (critical for repeated tool changes and multi-operation jobs)
Body Structure	Heavy-duty welded steel frame with vibration-damping design for long-term stability
X & Y Axis Structure	Precision linear guide rails + heavy-duty gear rack drive system
Z Axis Structure	High-rigidity linear guide rails + precision ball screw transmission
Max. Running Speed	50,000 mm/min (rapid positioning without sacrificing structural integrity)
Max. Working Speed	30,000 mm/min (optimized for consistent cut quality across wood, MDF, plywood, and composites)
Spindle	9.0 kW air-cooled high-torque spindle with ATC interface compatibility
Spindle RPM	24,000 rpm (wide speed range for optimal bit performance across materials)
Working Voltage	AC 220V / 380V, 50–60 Hz (dual-voltage support for global deployment)
Machine Weight	1800 / 2000 / 2300 / 2500 kg (varies by working area configuration)
