ATC CNC Wood Router Table Kit – 4-Axis, 3HP, 1200x2400mm

Key Specifications

Working Area	4×8 ft (1220×2440 mm)
Control System	DSP/NC Studio/Mach3 compatible
Spindle Power	3.0–5.5 kW air/water-cooled
4th Axis Support	Yes, rotary indexing for 3D carving
Material Compatibility	Wood, MDF, plywood, acrylic, foam

Estimated delivery time: Mar 29, Sunday – Apr 2, Thursday

Category:Uncategorized

Product Details

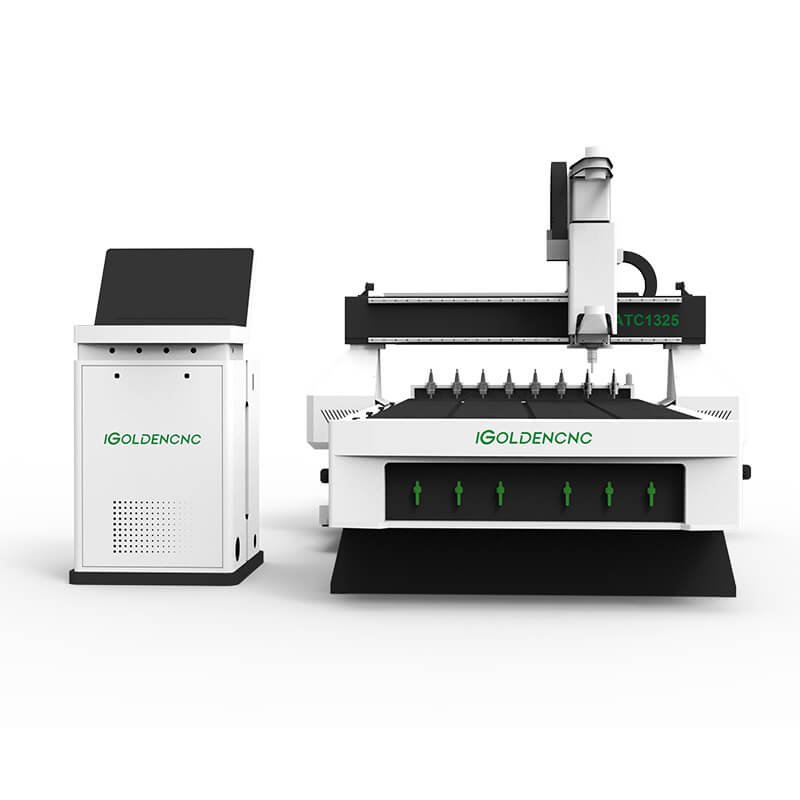

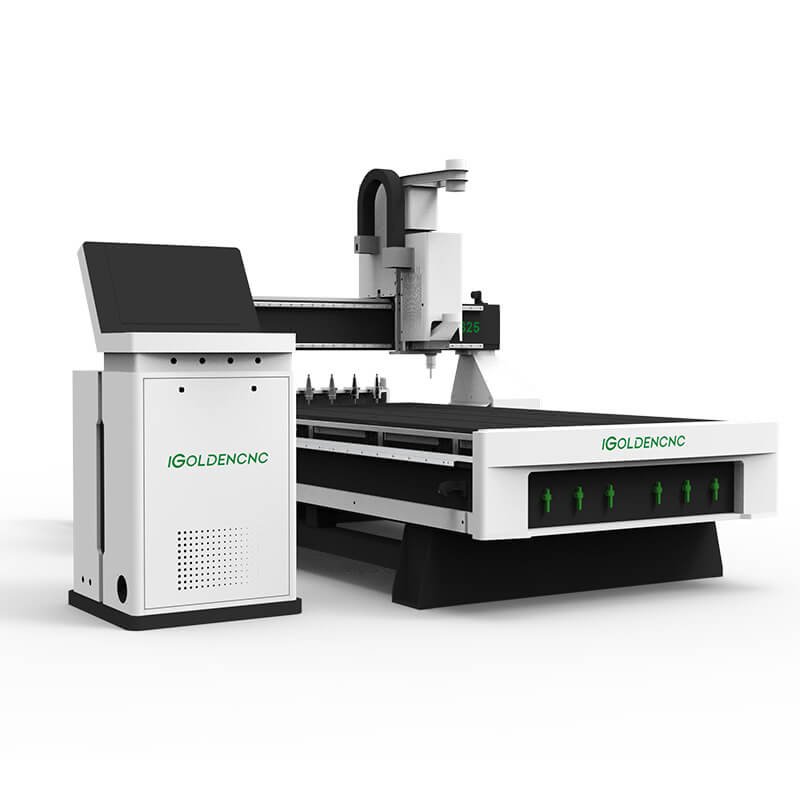

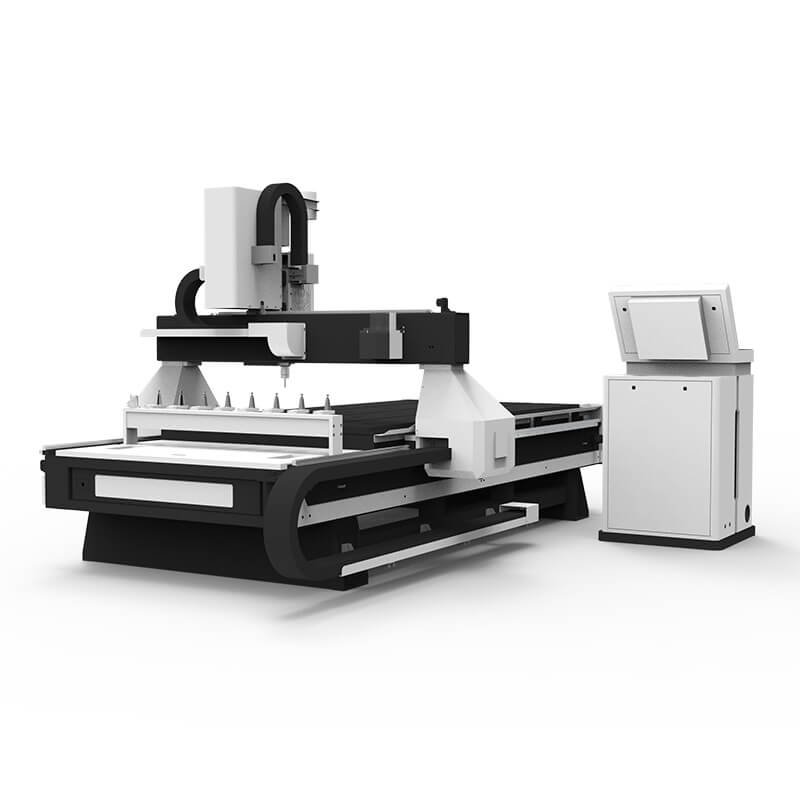

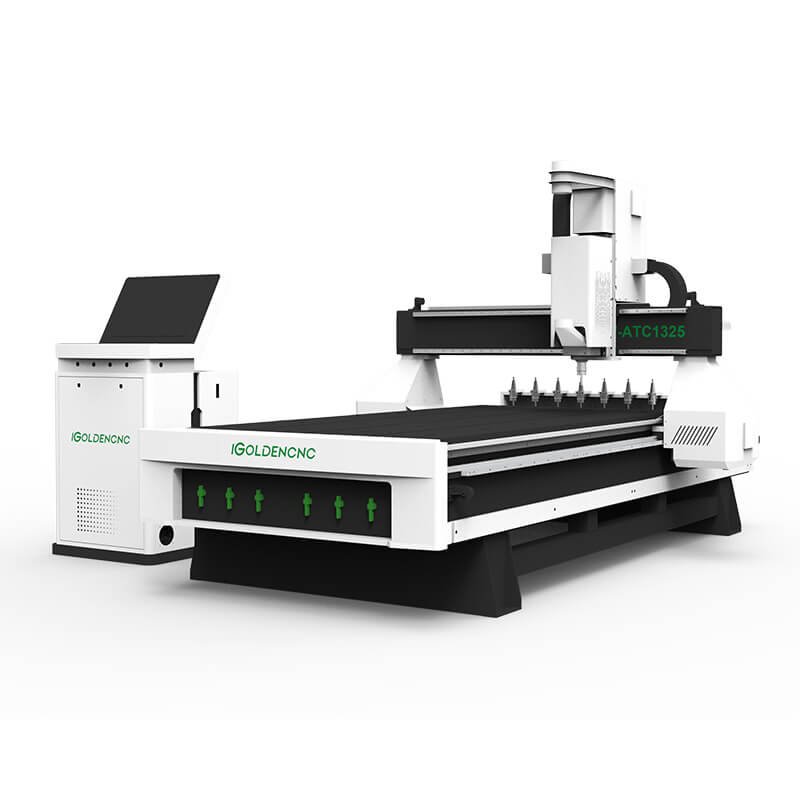

ATC 4-Axis Wood CNC Router

Engineered for precision and productivity, this 4-axis ATC CNC wood router delivers seamless automation with a robust 3HP spindle and a spacious 1200×2400mm work area. Ideal for high-volume woodworking — from custom furniture and architectural millwork to 3D sculpting and engraved signage.

The integrated 4th rotational axis enables complex contouring, multi-angle carving, and full-part machining without manual repositioning. Paired with automatic tool change (ATC) capability, it minimizes downtime and maximizes repeatability across diverse production workflows.

Key Technical Specifications

Parameter	Value
Model Name	ATC CNC Wood Router Table Kit – 4-Axis, 3HP, 1200×2400mm
Working Area (X × Y × Z)	1200 mm × 2400 mm × ≥200 mm (standard Z-travel)
Axis Configuration	4-Axis (X, Y, Z + A-axis rotational axis for cylindrical/contoured workpieces)
Spindle Power	3 HP (2.2 kW) air-cooled or water-cooled high-precision spindle (ATC-compatible)
Control System	Industrial-grade CNC controller (e.g., DSP, Mach4, or Syntec), supports G-code and CAD/CAM integration
Drive System	Precision servo motors with planetary gear reducers and rack-and-pinion (X/Y) + ball screw (Z)
Frame Construction	Heavy-duty welded steel frame with vibration-damping base and precision-machined aluminum gantry
Primary Applications	Wood furniture manufacturing, 3D sculpting & carving, signage production, mold making, crafts, architectural millwork, and custom engraving
Optional Upgrades	Spindle tilt mechanism, side rotary axis (B-axis), vacuum table with zoning, automatic tool changer (ATC) with 8–12 tools
