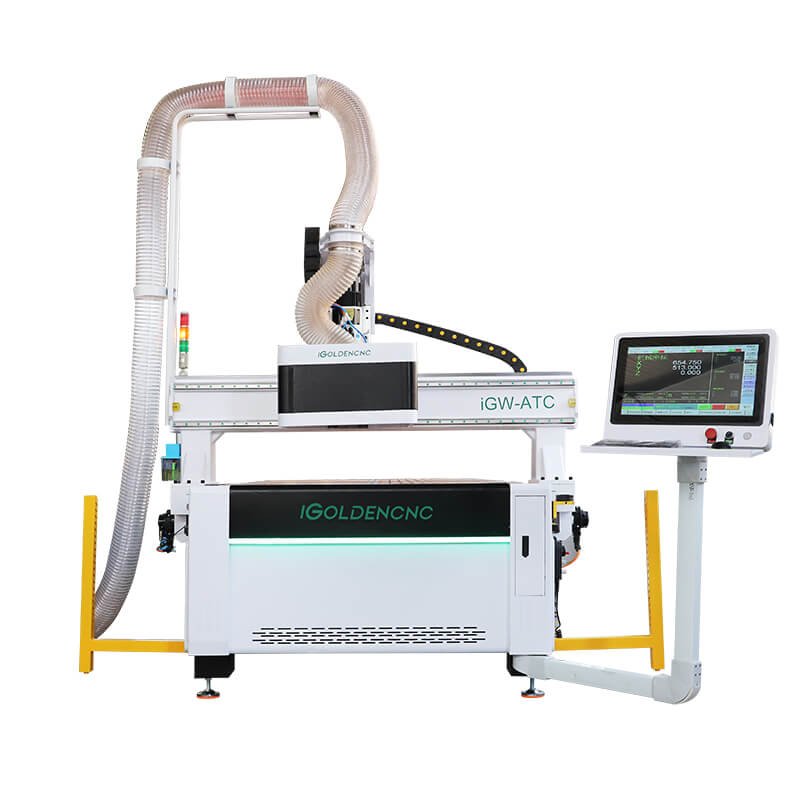

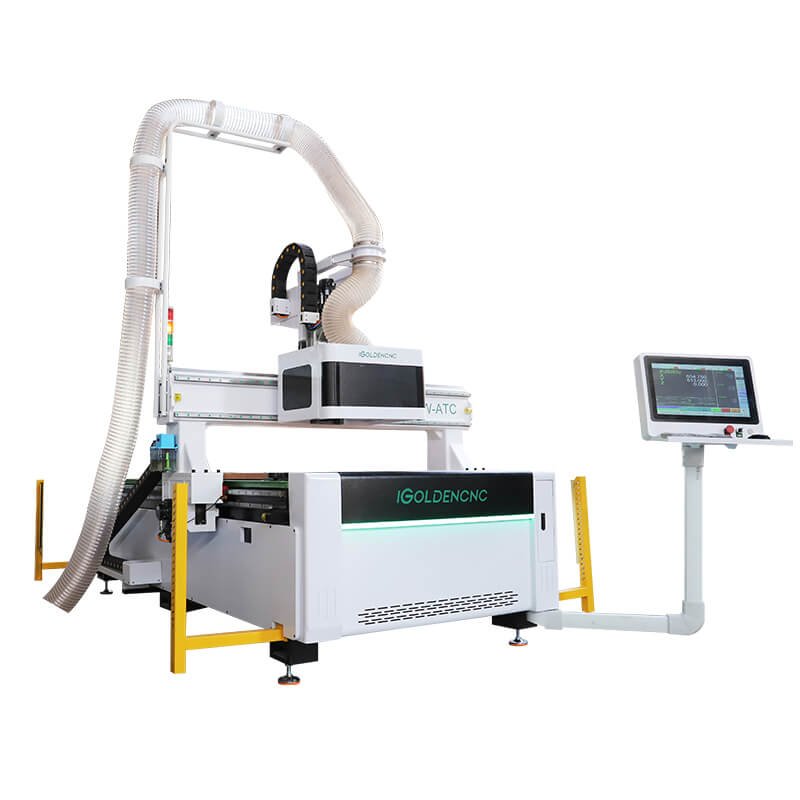

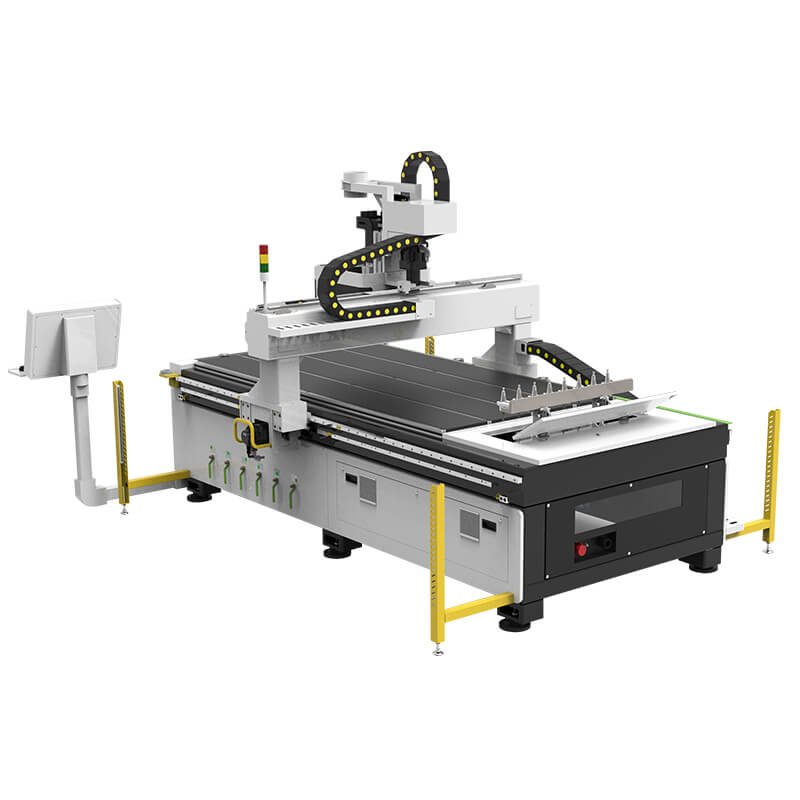

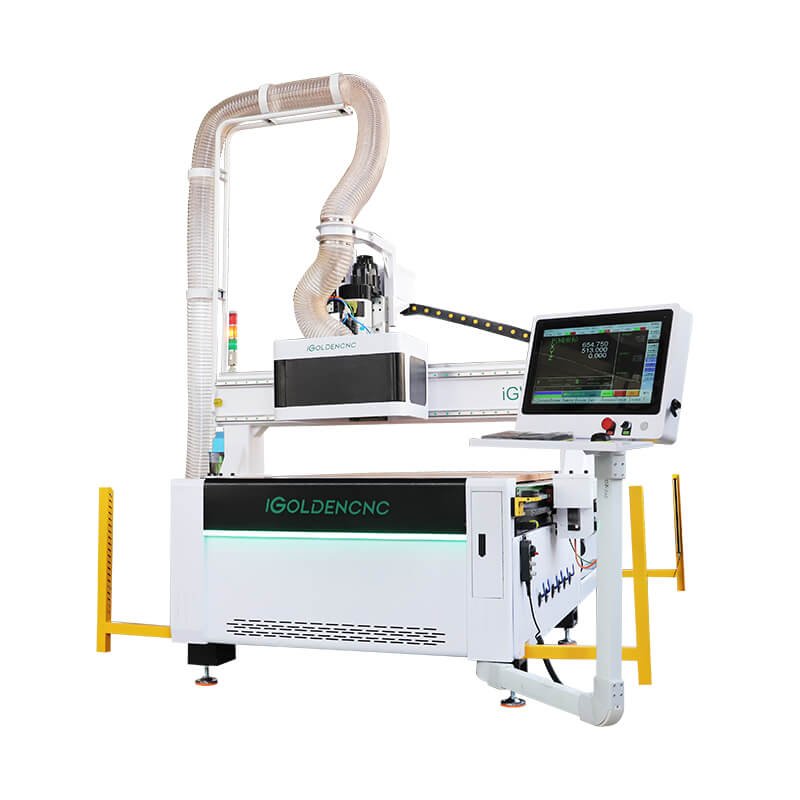

IGW-ATC 1325 PRO ATC CNC Router for Wood – High-Precision, Auto Tool Change

Key Specifications

Working Area 1300×2500 / 1500×3000 / 2000×3000 / 2000×4000 mm
Z Axis Height 250 mm
Positioning Accuracy 0.03 mm
Spindle 9.0 kW air-cooling, 24000 rpm
Max Working Speed 30000 mm/min
Policy 1: Free Shipping Over $500
Policy 2: 10% Off for New Customers
Estimated delivery time: Mar 29, Sunday – Apr 2, Thursday
Category:Uncategorized

Product Details

IGW-ATC 1325 PRO ATC CNC Router for Wood – High-Precision, Auto Tool Change

Engineered for professional woodworking environments, the IGW-ATC 1325 PRO delivers unmatched precision and seamless automation with its 8-station automatic tool changer (ATC) and high-torque ATC spindle. It enables uninterrupted multi-operation processing — including engraving, cutting, drilling, and hollowing — on a single workpiece, maximizing throughput and minimizing manual intervention. Ideal for custom furniture, cabinetry, and decorative wood fabrication, this industrial-grade router ensures repeatability, rigidity, and intelligent workflow integration.


IGW-ATC 1325 PRO ATC CNC Router for Wood – High-Precision, Auto Tool Change

Parameter Specification
Working Area 1300 × 2500 / 1500 × 3000 / 2000 × 3000 / 2000 × 4000 mm
Z Axis Height 250 mm
Positioning Accuracy 0.03 mm
Re-positioning Accuracy 0.02 mm
Body Structure Heavy-duty Welded Steel Frame — Optimized for rigidity and vibration damping
X, Y Axis Structure Precision Linear Guide Rails + Heavy-Duty Gear Rack Drive System
Z Axis Structure Precision Linear Guide Rails + High-Accuracy Ball Screw (P5 Grade)
Max. Running Speed 50,000 mm/min
Max. Working Speed 30,000 mm/min
Spindle 9.0 kW Air-Cooled High-Torque Spindle — ISO30 or BT30 taper (configurable)
Spindle RPM 0–24,000 rpm (variable frequency control)
Working Voltage AC 220V / 380V ±10%, 50–60 Hz (3-phase standard)
Machine Weight 1800 / 2000 / 2300 / 2500 kg (model-dependent)
