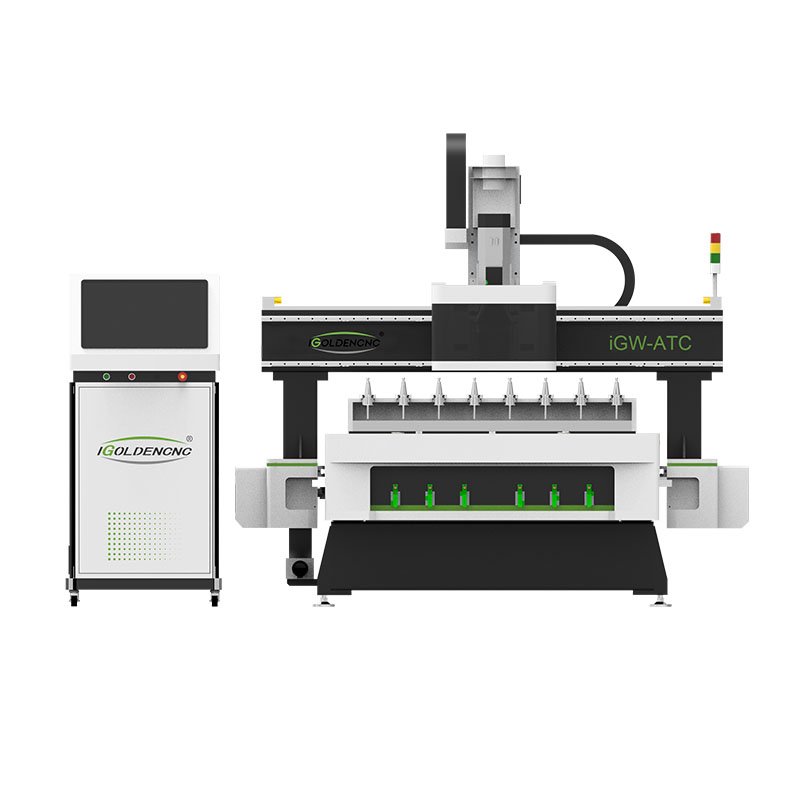

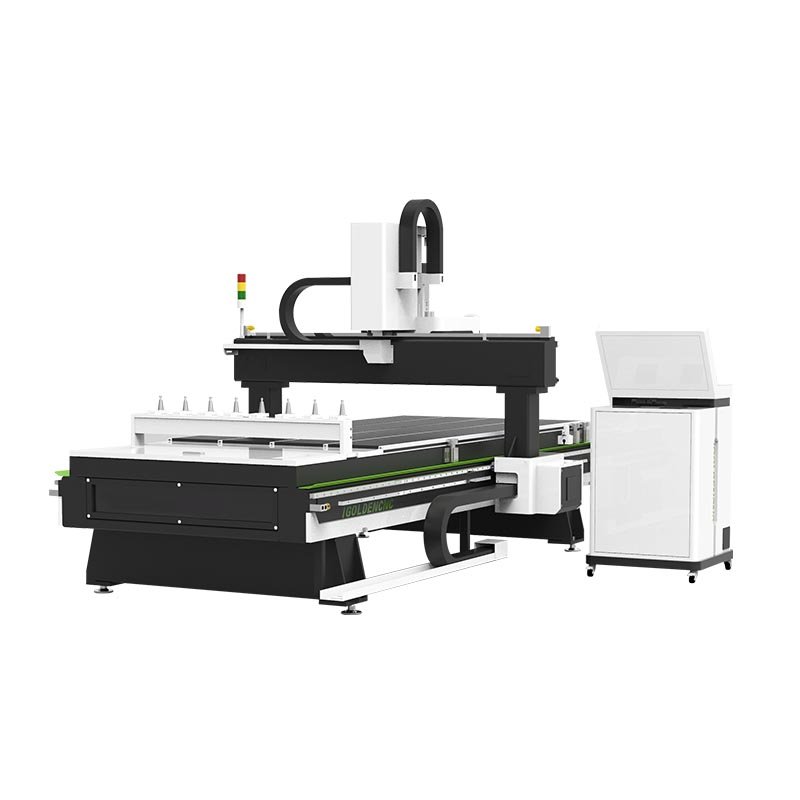

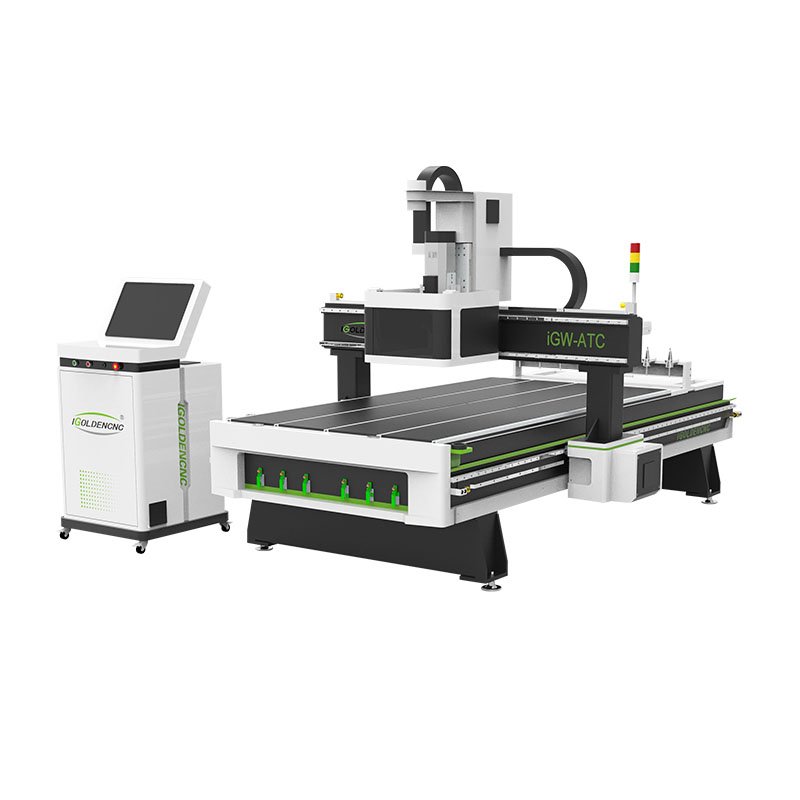

Linear ATC CNC Router Woodworking Machine – 4-Axis, 12k RPM, Auto Tool Change
Engineered for precision and productivity, this industrial-grade 4-axis Linear ATC CNC router delivers seamless automation, high-speed machining (up to 12,000 RPM), and rapid tool changes — eliminating manual intervention and maximizing workshop efficiency.
Ideal for complex 3D wood carving, cabinetry, signage, and custom furniture production, it supports large-format workpieces (e.g., 1325, 1530, 2030, 2130 mm) and integrates effortlessly into professional manufacturing environments.
Linear ATC CNC Router Woodworking Machine – 4-Axis, 12k RPM, Auto Tool Change
| Parameter |
Specification |
| X, Y Axis Working Area |
1300 × 2500 / 1500 × 3000 / 2000 × 3000 / 2000 × 4000 mm (customizable configurations) |
| Z Axis Working Height |
250 mm |
| Positioning Accuracy |
±0.03 mm |
| Re-positioning Accuracy |
±0.02 mm |
| Body Structure |
Heavy-duty welded steel frame with vibration-damping design for enhanced stability and longevity |
| X, Y Axis Drive System |
Precision linear guide rails + high-precision gear rack transmission (Taiwan Xinyue) |
| Z Axis Drive System |
High-rigidity linear guide rails + precision ball screw |
| Max. Running Speed |
50,000 mm/min |
| Max. Working Speed |
30,000 mm/min |
| Spindle Type |
HQD air-cooled automatic tool change (ATC) spindle — standard; optional Italy HSD high-performance spindle |
| Spindle Power |
9.0 kW (air-cooled) |
| Spindle Speed Range |
0–24,000 rpm (variable frequency control); nominal operating speed: 12,000 rpm for optimal wood routing efficiency |
| Working Voltage |
AC 220V / 380V ±10%, 50–60 Hz, three-phase |
| Machine Weight |
1800 / 2000 / 2300 / 2500 kg (varies by working area configuration) |
| Worktable |
Vacuum-suction worktable with T-slot grooves (standard); optional full vacuum table upgrade |
| Control System |
Industrial-grade CNC controller with ATC logic, G-code compatibility, and intuitive HMI interface |
| Tool Setting |
Automatic tool sensor for precise Z-zero detection and tool length compensation |
| Electrical Components |
Schneider Electric (France) contactors, circuit breakers, and PLC modules |
| Motion System |
High-torque servo motors with planetary reducers; closed-loop feedback for real-time accuracy |
| Optional Accessories |
Rotary axis (4th axis), automatic material loading/unloading system, dual independent worktables, pneumatic positioning cylinders |
