Wood CNC Router & Laser Engraver Combo – 4-Axis, 1500x3000mm, Dual-Function Precision Woodworking

Key Specifications

Model	iGW-ATC-1325
Working Area	1300 × 2500 × 400 mm
Spindle & Laser	9.0kW HQD ATC + 5W Laser Marking
Control System	Taiwan LNC
Accuracy	Repositioning ±0.02 mm

Estimated delivery time: Mar 29, Sunday – Apr 2, Thursday

Category:Uncategorized

Product Details

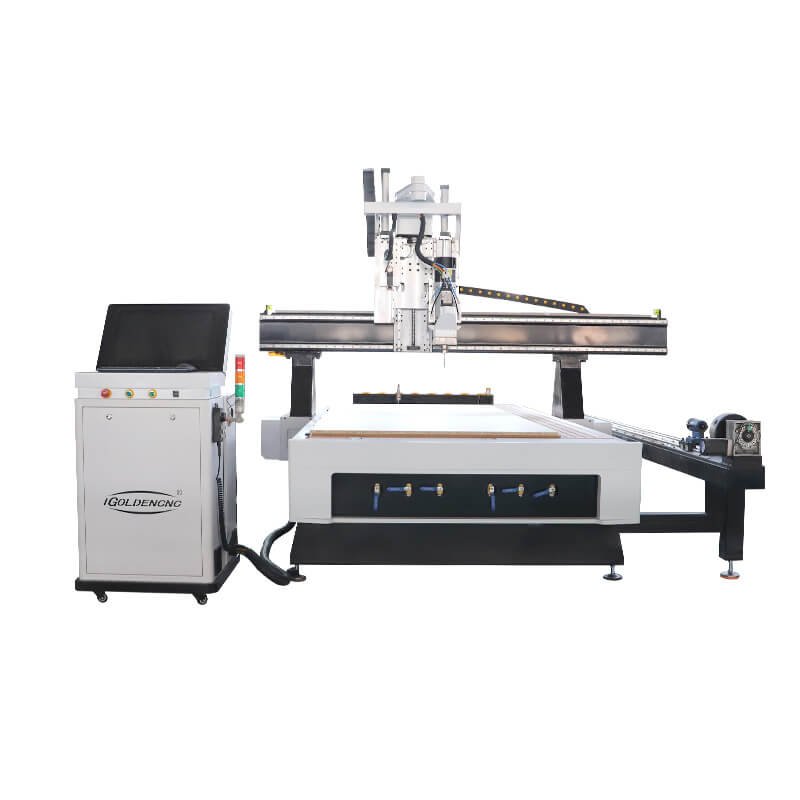

4-Axis Wood CNC & Laser Combo

This high-precision 4-axis wood CNC router and laser engraver combo delivers unmatched versatility for professional woodworking—enabling simultaneous routing, carving, cutting, and fine laser engraving on wood, MDF, acrylic, plastic, foam, and soft metals. Integrated dual-function capability eliminates workflow bottlenecks, reduces floor space, and maximizes ROI.

Equipped with optional ATC, rotary axis, and customizable tool libraries, it supports complex 3D profiling, grooving, drilling, and intricate surface engraving—all from a single, industrial-grade platform.

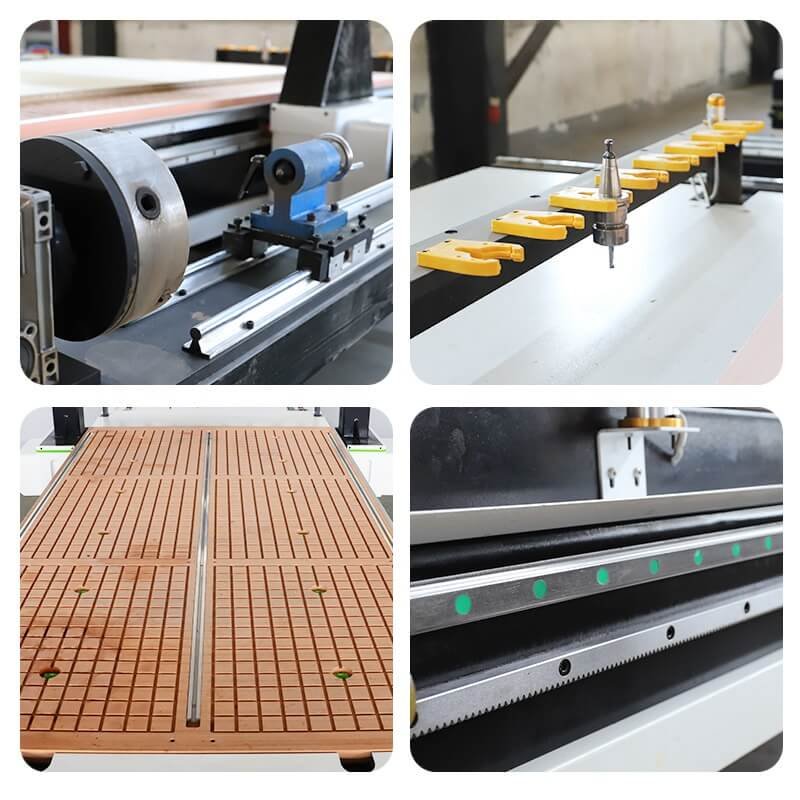

Technical Specifications

Model	iGW-ATC-1325
Working Area	1300 × 2500 × 400 mm (X × Y × Z)
Spindle System	HQD 9.0 kW air-cooled automatic tool changer (ATC) spindle; integrated 5W fiber laser marking head for dual-function operation
Rotation Axis	Yes — 4-axis synchronized motion support (X/Y/Z + A-axis rotational capability)
Maximum Running Speed	50,000 mm/min
Maximum Working Speed	30,000 mm/min
Repositioning Accuracy	±0.02 mm
Machine Frame	Heavy-duty T-type welded steel structure for enhanced rigidity and vibration damping
Gantry Structure	Reinforced steel gantry with precision alignment
Worktable	Vacuum suction table with T-slot design for secure clamping of wood, MDF, acrylic, and composite materials
Linear Guide Rails	Taiwan HIWIN high-precision linear rails
Ball Screws	Taiwan TBI high-accuracy ground ball screws
Drive System	Industrial-grade servo motors and matched servo drives
Gear Reducer	Japan SHIMPO high-torque, low-backlash planetary reducer
Frequency Converter	Taiwan Fuling industrial VFD for stable spindle speed control
Electrical Components	France SCHNEIDER electrical control system (contactors, circuit breakers, PLC modules)
Control System	Taiwan LNC advanced CNC controller with intuitive interface and G-code compatibility
Operating Voltage	380 V / 50 Hz (3-phase industrial power supply)
